Pneumatic Jewelry Engraver,ET-G03
Pneumatic Jewelry Engraver,ET-G03
Couldn't load pickup availability
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/11_8ab5b811-0605-44d2-a342-6c9402445077_480x480.webp?v=1709002965)
Specifications
Item No: ET-G03
Item Name: Jewelry Pneumatic Engraving Machine
Power Supply: 220V 50Hz/110V 60Hz
Handpiece Working Speed: 400-8000RPM
Range of Pressure Regulation(Foot Control): 0-60PSI
Range of Pressure Regulation(Hand Control):0-30PSI
Dimension: 29.2*15*20.6CM
Shipping Dimension: 39*22*26CM
Shipping Weight: 11KG
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/05_224b279a-b1f9-49fd-a731-2adefa6a2548_480x480.webp?v=1705634552)
Precise Pressure Gauge
The pneumatic engraver incorporates a specialized pressure regulator and gauge, allowing for the selection of the desired pressure level, from high to low speeds, enabling precise engraving and ensuring exceptional engraving outcomes.
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/07_728b80df-1c95-492e-ac40-1f5e951589e3_480x480.webp?v=1703922774)
Additional Filter
A specialized filter device has been included to prevent the speed of the machine from being affected by impurities produced during the engraving process. This addition effectively gathers metal impurities, enhancing overall work efficiency.
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/06_8c92ade4-a8c3-4a93-a39e-6fb454988b27_480x480.webp?v=1703922788)
Pressure Regulator
The pressure regulator enables precise adjustments to the pneumatic engraving machine, offering multiple levels of pressure control. This feature allows for fine-tuning the engraving process according to different project requirements, ensuring accuracy and optimal performance.
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/08_f70e8b34-eb0d-492a-8935-8f2249c06a22_480x480.webp?v=1703922806)
Adjustable Speed
By directly linking the foot pedal to the port located at the rear of the jewelry engraver, you gain the ability to efficiently manage and modify both the engraving speed and impact force intensity through this particular apparatus.
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/12_88f1ae01-fcc7-4f24-81dc-02bb460a03d2_480x480.webp?v=1709003005)

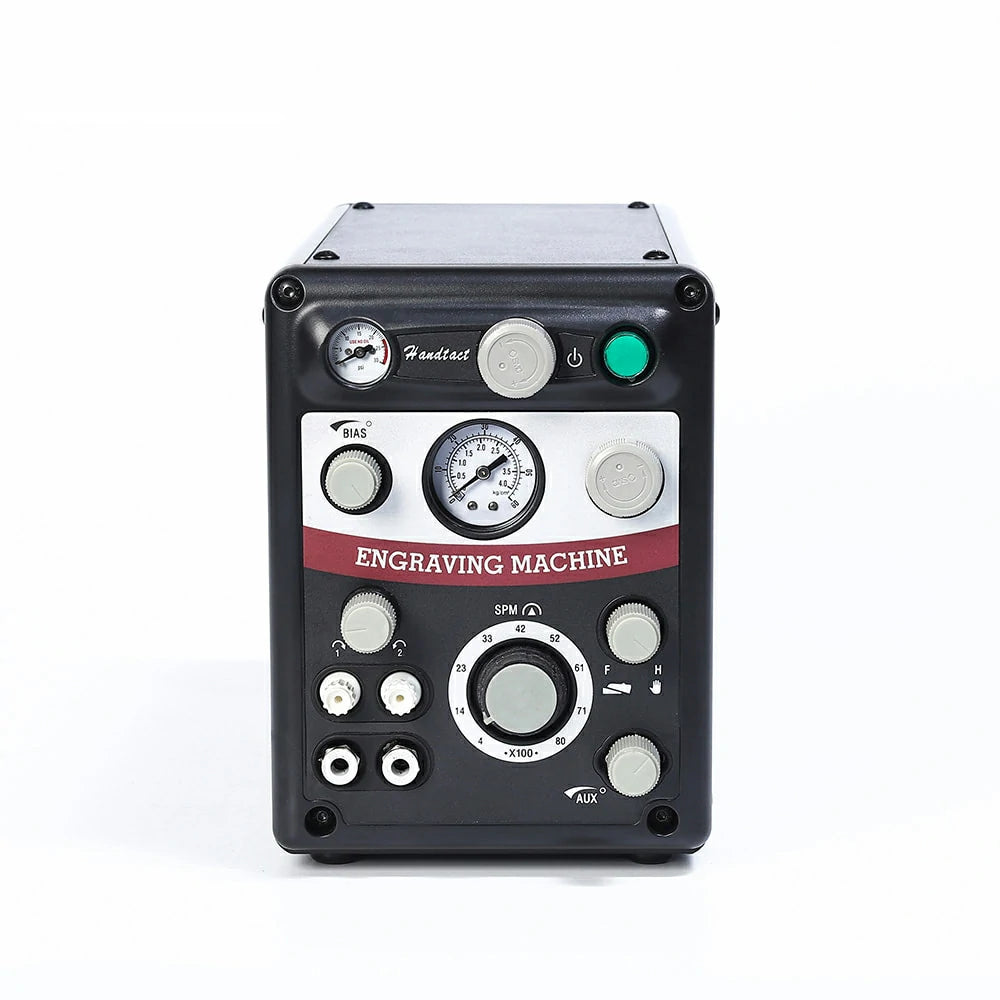

Multifunctional Control Panel
The pneumatic engraver showcases prominently labeled buttons that offer comprehensive functionalities for swift and effortless operation. Furthermore, its well-thought-out layout, coupled with an intuitive and distinct mechanical pointer, enhances the convenience of daily use.
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/09_2af365c6-b09e-4b4d-9d7a-93d1ac986dec_480x480.webp?v=1703922891)
Connect Fitting
AIR INPUT
THROTTLE CONNECTION
![diy pneumatic engraver ET-G03](https://cdn.shopify.com/s/files/1/0676/6156/2111/files/10_d10cdb84-0034-4a1a-817e-032237da4e37_480x480.webp?v=1709003029)
Wide Application
The pneumatic engraving machine is adept at engraving various types of metal jewelry. Its applications span across jewelry processing, engraving, carving, beading, mosaic, and more.
![diy pneumatic engraver ET-G03](http://www.engravertool.com/cdn/shop/files/PneumaticJewelryEngravingMachine_ET-G03.webp?v=1709781760&width=1445)
![diy pneumatic engraver ET-G03](http://www.engravertool.com/cdn/shop/files/01_af95036b-40fd-41ba-9e0d-28809b1560ec.webp?v=1709781760&width=1445)
![diy pneumatic engraver ET-G03](http://www.engravertool.com/cdn/shop/files/04_80aaa01d-c1de-4ca8-87e8-adbc724be0f3.webp?v=1709781760&width=1445)
![diy pneumatic engraver ET-G03](http://www.engravertool.com/cdn/shop/files/02_bc086657-1bd4-400e-8837-21e78721bb89.webp?v=1709781760&width=1445)
